Batteries

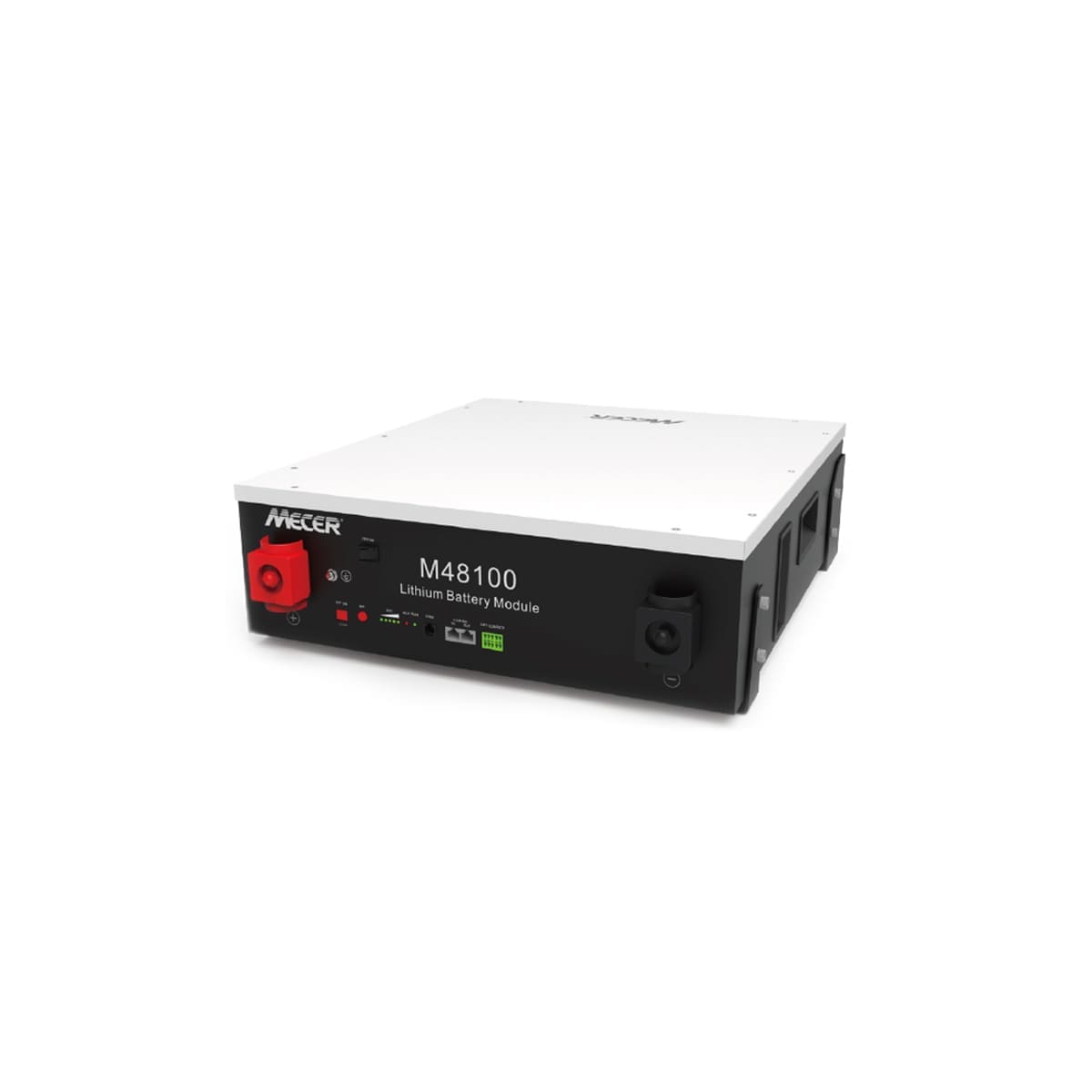

Mercer 4.8kWh Lithium Battery 48 VOLTS (M5)
Availability:
Out of stock
- Model: M48100
- Battery Type: LiFePO4
- Nominal Battery Energy: 4.8 kWh
- Battery Capacity: 100 Ah
- Nominal Voltage: 48 V
- Charging Cut-off vol.: 54V
- Discharging End-of vol.: 42V
- Recommended C Rate: 0.5C
- Recommended Charge/Discharge Current: 50A
- Max. Charge/Discharge Current: 75A
- Charging Temp. Range: 0-50
- Discharging Temp. Range: -20-50
- Communication: CAN / RS485
- Warranty: 5 Years
- Calendar Life: [1] 6000 Cycles
- Protection Level: IP20
- Scalability: Up to 40 units in parallel
R29,127.60
Out of stock
- Model: M48100
- Battery Type: LiFePO4
- Nominal Battery Energy: 4.8 kWh
- Battery Capacity: 100 Ah
- Nominal Voltage: 48 V
- Charging Cut-off vol.: 54V
- Discharging End-of vol.: 42V
- Recommended C Rate: 0.5C
- Recommended Charge/Discharge Current: 50A
- Max. Charge/Discharge Current: 75A
- Charging Temp. Range: 0-50
- Discharging Temp. Range: -20-50
- Communication: CAN / RS485
- Warranty: 5 Years
- Calendar Life: [1] 6000 Cycles
- Protection Level: IP20
- Scalability: Up to 40 units in parallel
